Product Highlight
1, Up to 1000V output voltage, compatible with future vehicle
2, Complete power redundancy design, support modular upgrade
3, Simple and reliable designed for quick cleaning and replacement.
4, Tested to IK10 High impact resistance
5, 2 years guarantee for hareware, 5 years guarantee for software.
6, Ruggedized enclosure Built-in safety insulation protection
7, OEM and ODM software platform and App
8, Tested to IK10 High impact resistance
9, MID Grade Charging Bill
10,Up to 96% AC/DC conversion efficiency
11,40 minutes DC charging full experience
12,Payment integration for credit/debit cards or mobile apps

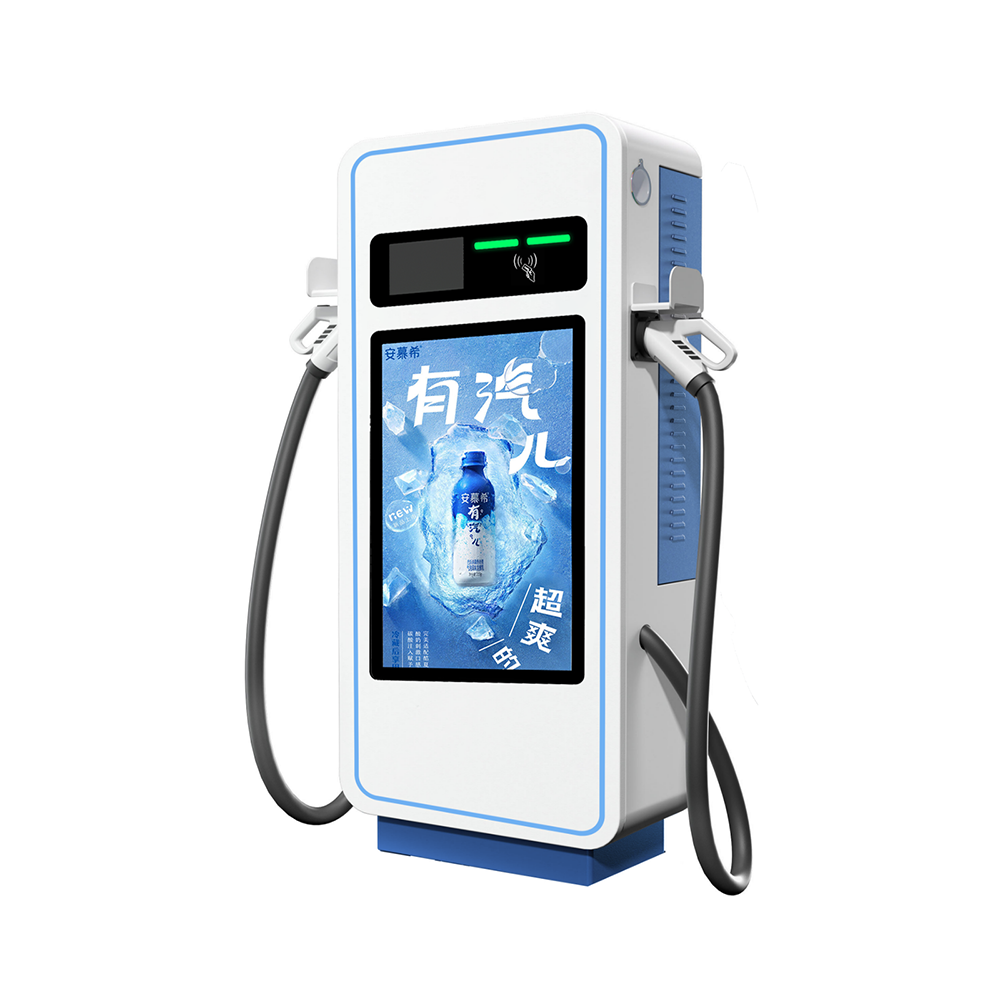

| 60-120 KW Big Screen Charger: | |
| Rated Power: | 60-120KW |
| Water Proof Level: | IP55 |
| Output Current | 100-200 Amp |
| Output Voltage: | DC 200-1000V |
| Input Voltage (AC): | 3P+N+PE 380V±10% |
| Connectors: | CCS2/GBT/CCS1/CHAdeMO |
| Charger tpye: | 2Guns |
| Operating temperature | -20℃ to +50℃ |
| Work Altitude | <2000m |
| Noise | ≤60dB |
| Operating humidity | 5% to 95% Non-condensing |
| Display Screen: | 7 Inch Touch screen |
| User indentification: | Apps/RFID/credit card/Password |
| Visual Indication: | Charging Status, System Error |
| Interface: | Ethernet/4G |
| APP Version | IOS,ANDROID |
| Protocol | OCPP1.6J |
| LED indicator: | Colorful LED |
| APP Language: | Support more than 30 |
| Push Button: | Emergency Stop |
| Product life | MTBF:≥30,000 Hours |
| Cooling types | Fan cooling |
| Enclosure material | Galvanized Sheet |
| Display Screen: | 32 Inch Advertisement IPS Screen |
| Safety protection | RCD Type A (30mA)+6mA DC |
| AC/DC Efficiency | Max 95% |
| Ripple Factor | ≤±1% |
| Installation | Floor-stand |
| Product Dimension(L*W*H): | 920*520*1580(MM) |
| Net Weight: | 160KGS |
| Carton package | Wooden case |
| Wire Length | 5 Meters/16ft(Optional) |
| Installation | Floor-stand |
| Certification: | CE |
