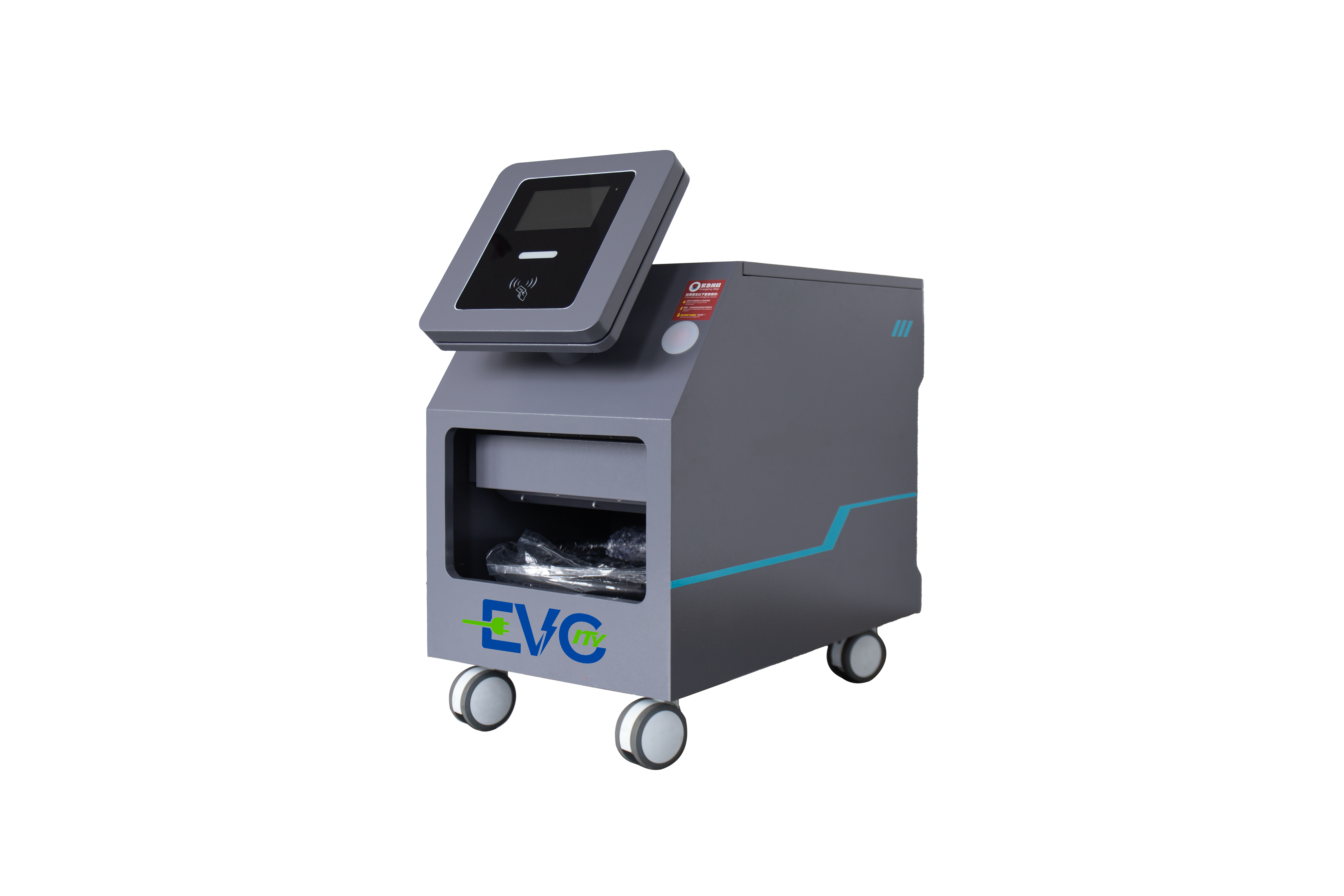

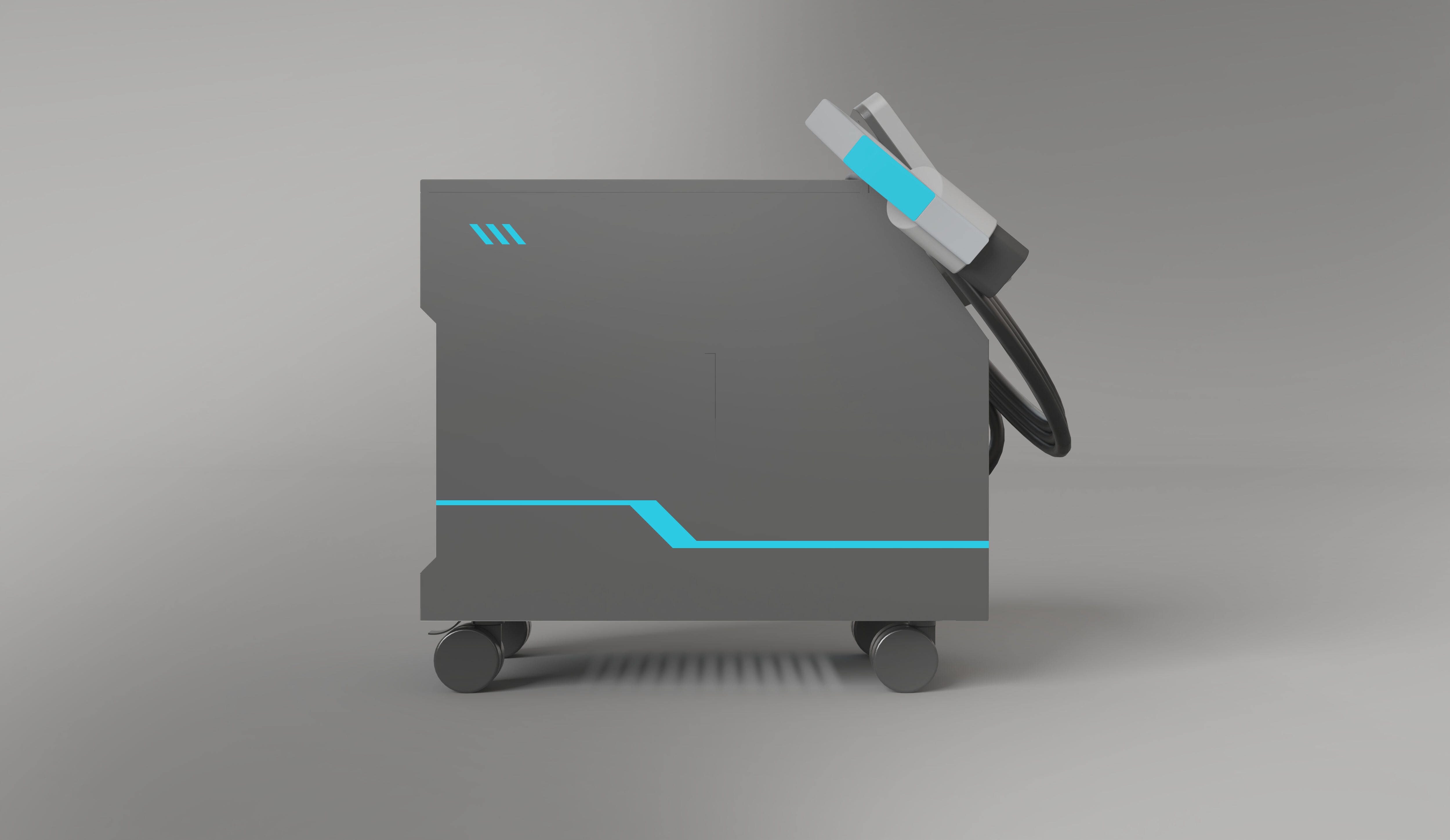

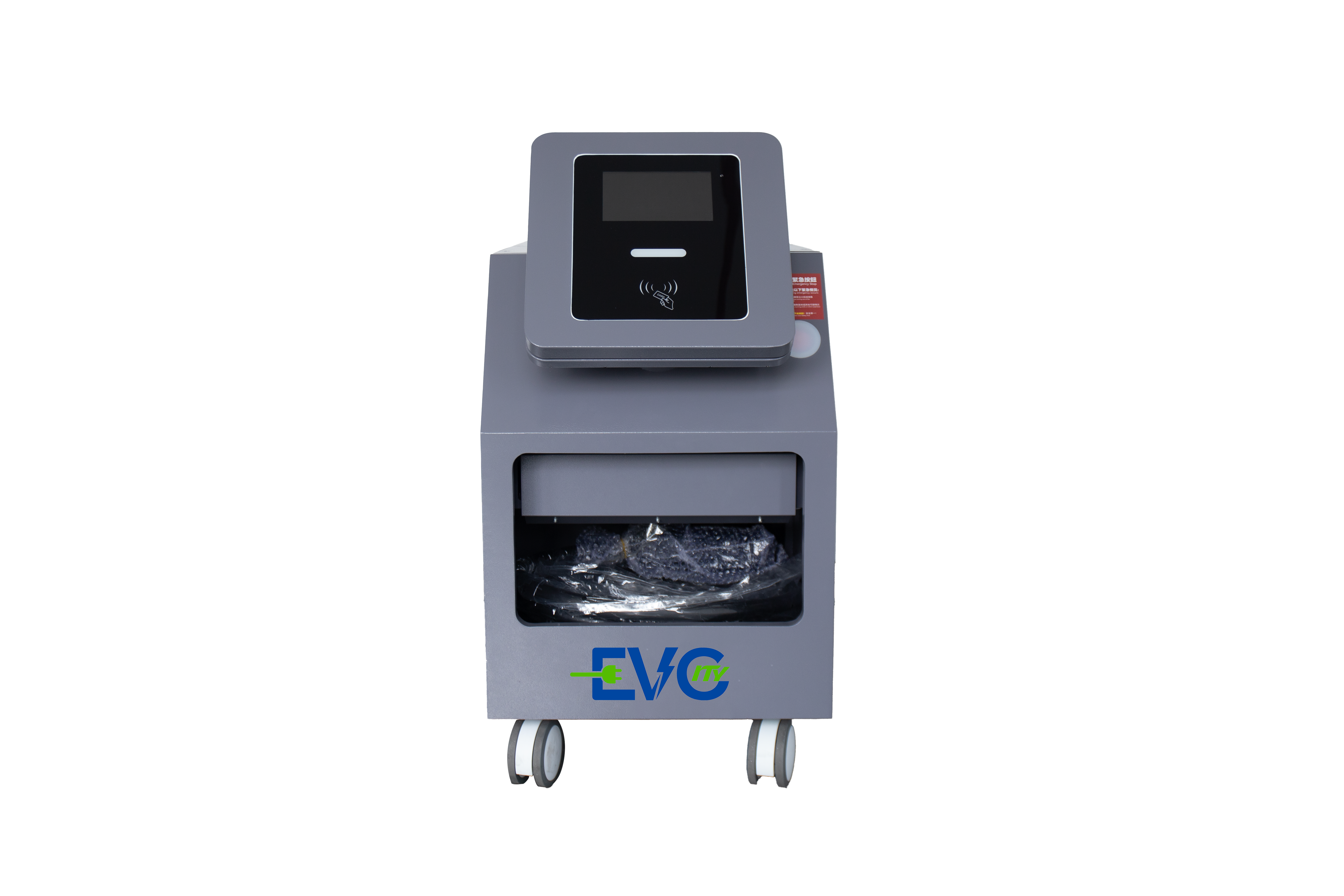

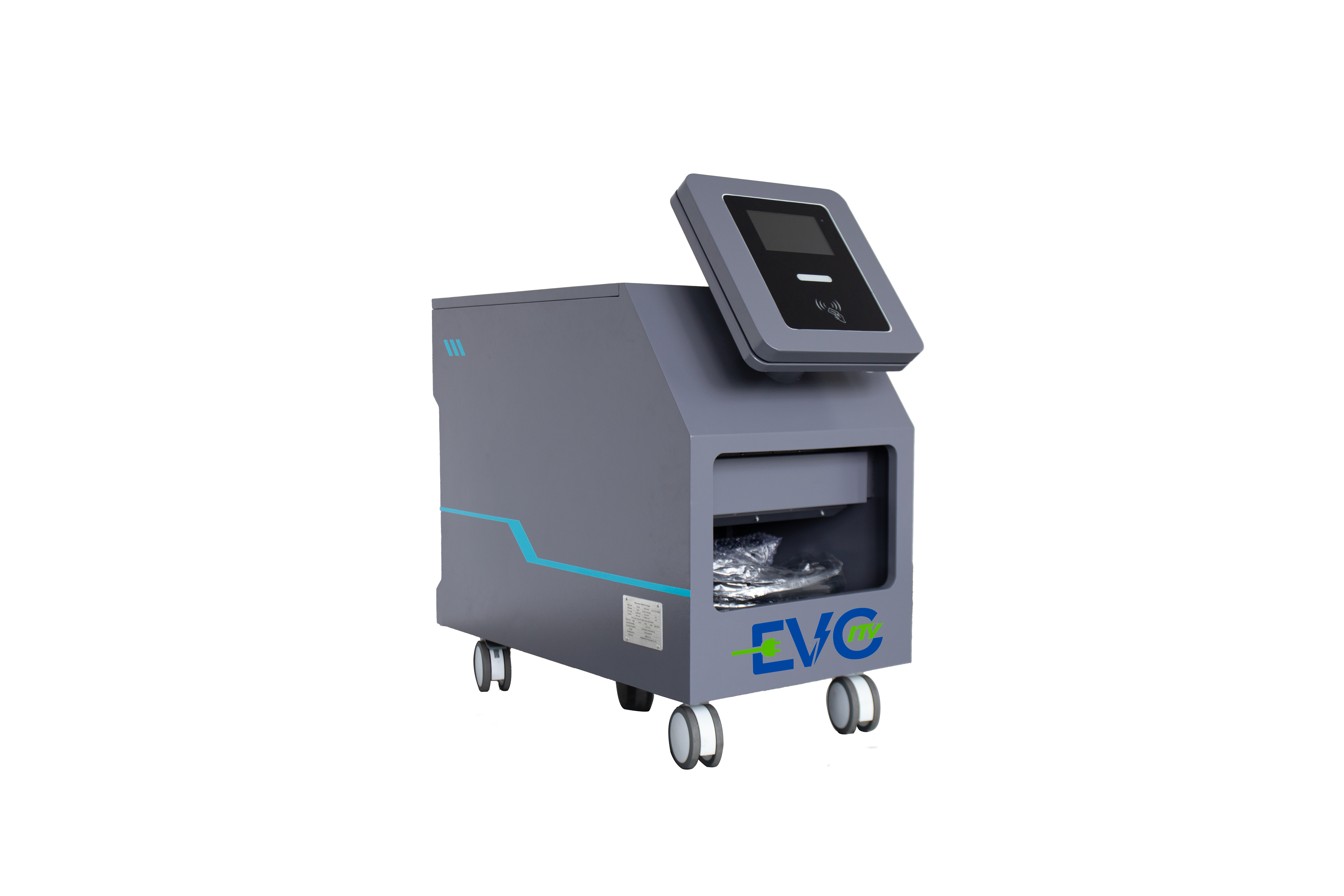

| 30-40KW Mobile Charger: | |
| Rated Power: | 30-40KW |
| Water Proof Level: | IP55 |
| Output Current | 100-125 Amp |
| Output Voltage: | DC 200-1000V |
| Input Voltage (AC): | 3P+N+PE 380V±10% |
| Connectors: | CCS2/GBT/CCS1/CHAdeMO |
| Charger tpye: | 1Gun |
| Operating temperature | -10℃ to +50℃ |
| Work Altitude | <2000m |
| Noise | ≤60dB |
| Operating humidity | 5% to 95% Non-condensing |
| Display Screen: | 7 Inch Touch screen |
| User indentification: | Apps |

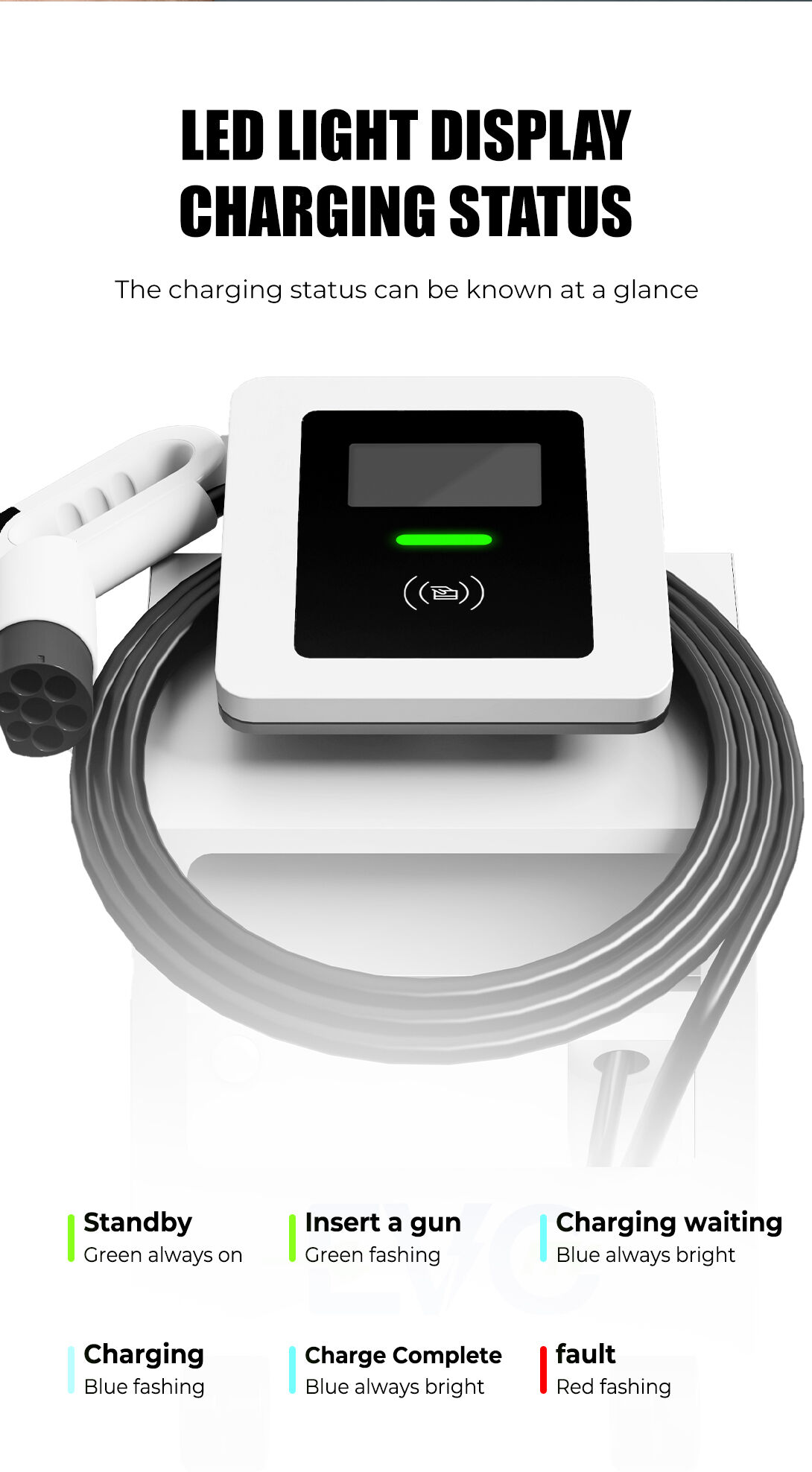

| Visual Indication: | Charging Status, System Error |
| Interface: | Ethernet/4G/WiFi |
| APP Version | IOS,ANDROID |
| Protocol | OCPP1.6J |
| LED indicator: | Colorful LED |
| APP Language: | Support more than 30 |
| Push Button: | Emergency Stop |
| Product life | MTBF:≥30,000 Hours |
| Cooling types | Fan cooling |
| Enclosure material | Galvanized Sheet |
| MID Class Meter | optional |
| Safety protection | RCD Type A (30mA)+6mA DC |
| AC/DC Efficiency | Max 95% |
| Ripple Factor | ≤±1% |
| Installation | Floor-stand |
| Product Dimension(L*W*H): | 1070*620*1140(MM) |
| Net Weight: | 90KGS |
| Carton package | Wooden case |
| Wire Length | 5 Meters/16ft(Optional) |
| Installation | Floor-stand |
| Certification: | CE |
