Core Advantages：
●FLEXIBLE Power Configuration
●High reliability & durability
●OCPP 1.6J Compliance Backend System
●GBT/ cCS2/ccs1
●Easy To Maintain, Safe To Use
●Compact In Size
●Built With Safety Isolation
Description:

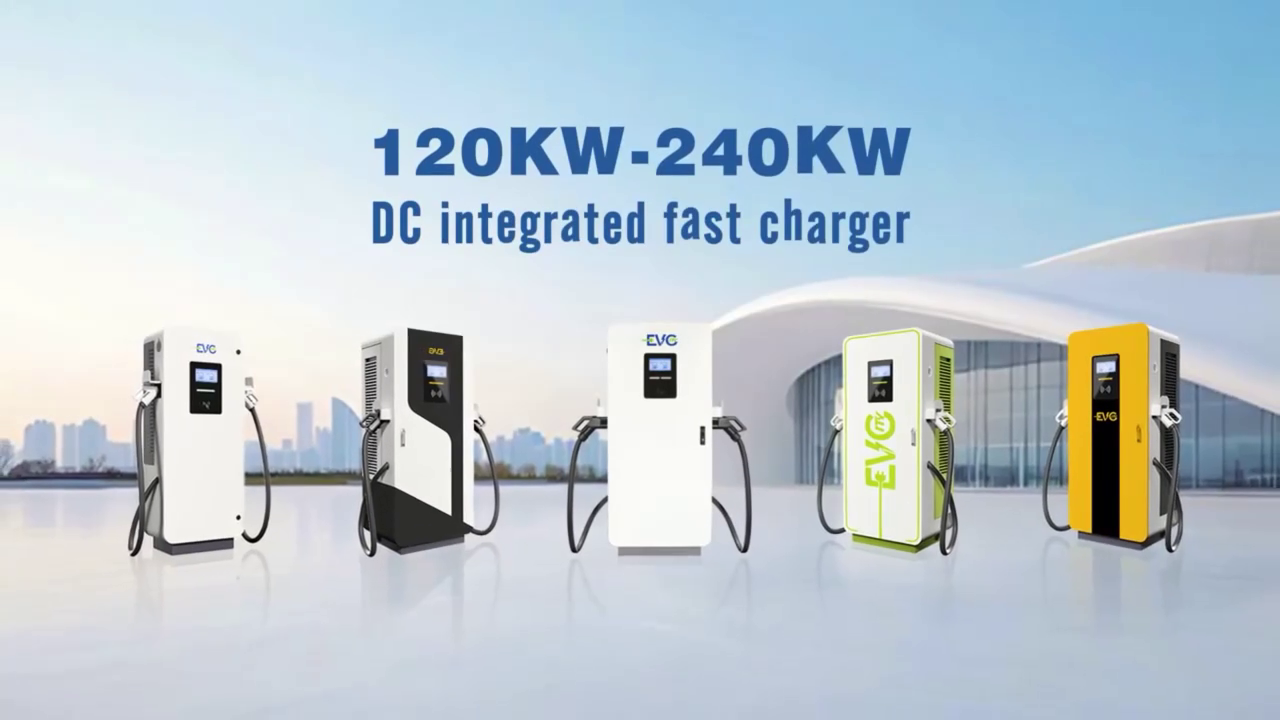

D06 commercial DC fast charger (120/160/180KW). Compatible with CCS2 (EU), GB/T (China), and CCS1 (US) standards
Applications:

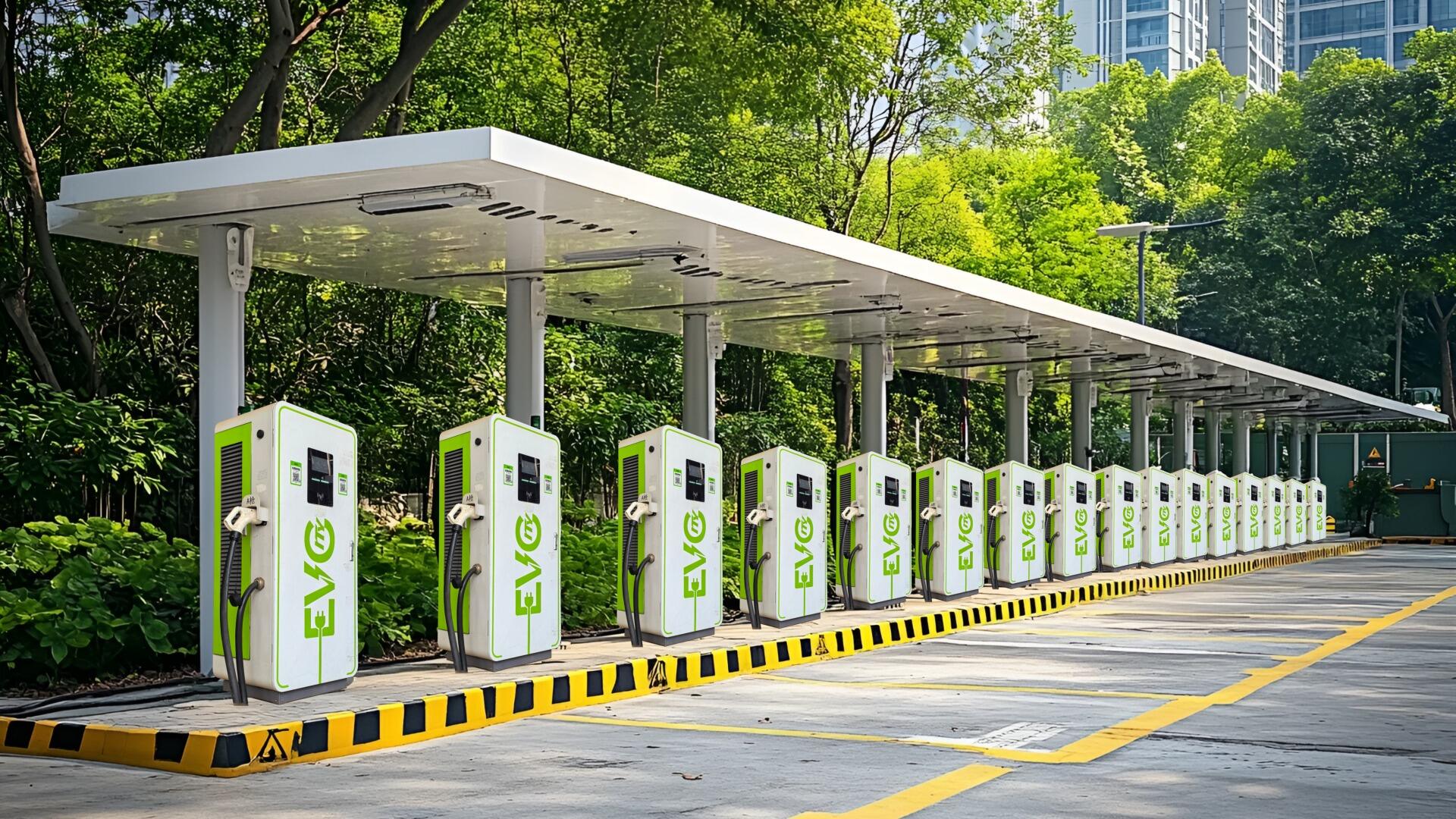

●Public Parking:Convenient DC fast charging for public use.
●Business Parks:Serves company and guest vehicles.
●Highway Stops:Rapid recharging for long-distance EV travel.
Introduction
Product Technical Specifications
| Model | D6-120K2E | D6-160K2E | D6-180K2E | D6-240K2E | |
| Input | Power Supply | Three-phase 3P+N+PE | |||
| Rated Votage | 380VAC±15% | ||||
| Rated Current | 200A | 260A | 300A | 380A | |
| Frequency | 50/60HZ | ||||
| Output | Votage | 200-1000VDC | |||
| Current | 250A | 250A | 250A | 250A | |
| Power | 120KW | 160KW | 180KW | 240KW | |
| UserInterface | LED Indicator | Light Color Indicator | |||
| RFID Reader | ISO/IEC 14443 | ||||
| Start Mode | APP/RFID Card | ||||
| Communication | Supported | RJ45/4G | |||
| Protocol | OCPP 1.6 Json | ||||
| Max RFOutput | <20dBm(-10dBm) | ||||
| Safety | RCD | RCD Type AC(30) | |||
| Ingress Protection | Ip54 | ||||
| Impact Protection | Ik08 | ||||
| E lectrcaProtection | Over current protection,Residual current protection,Surge protection Over/Under voltage protection,Over temperature protection | ||||
| Warranty | 2 years | ||||
| Environment | Installation | Floor mount | |||
| WorkingTemperature | -30℃~50℃ | ||||
| Working Humidity | 5%～95% | ||||
| Work Altitude | <2000m | ||||
| Package | Product Dimension | 915*550*1695mm(L*W"H) | |||
| Packge Dimension | 1050*710*1830mm | ||||
FAQ：
Q1: Pre-installation Prep?
A1: Ensure charging spot accessibility + maintenance space; Pre-installed AC input components with protection; Reserve power line.
Q2: Reserved Cable Specs?
A2: Confirm 5-core power wire integrity; Leave 50cm slack.
Q3: Drilling & Bolt Requirements?
A3: 16mm drill holes at marks; Insert expansion bolts horizontally until fully seated.
Q4: Wiring Connections?
A4: Connect per labels: L1/L2/L3=Phases, N=Neutral, Yellow-green=Ground.
Q5: Electrical Design Compliance?
A5: Voltage/current ratings + cable sizing must meet national regulations.
